Hi! Noob here. I'm using my DT80 for simple temperature measurements, succesfully getting two simultaneous signals in ports 1 & 2. My issue is that I want to trigger logging schedules, i.e. by having a circuit in the upper left block (the 1D 2D...GND block) that will start the logging. How would i code this in the interface?

Thanks for any help, and sorry if this is unclear! Not fluent in this language :)

Hi oddtowe,

Not to worry, I can understand you even if you just show a picture with short comment.

First I am sorry for late reply since we have a focus to release a new dEX 2.0 version (2.1.18). I will put it in the new thread so you can download it.

When you declare a schedule on dEX you will see and set the triggering selection. One of the triggering selection is advance triggering which based on the change of digital channels. If you use a single digital channel (i.e.: door switch connected to 1D) then you have to define 1D whether rising (0 to 1),falling (1 to 0) or both to trigger the schedule.

Old dEX:

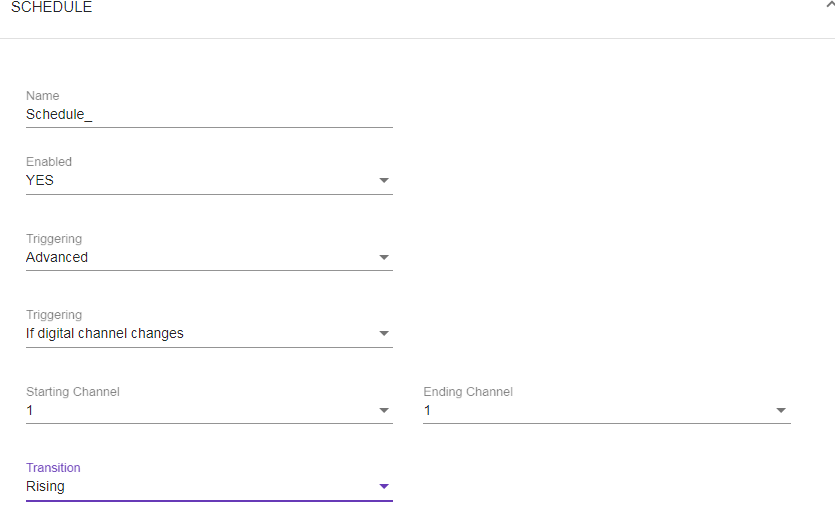

dEX 2.0:

Best regards,
Rudy Gunawan
